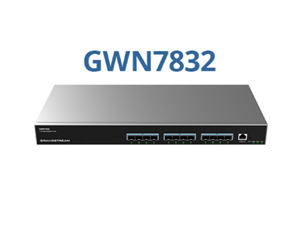

GWN7832

The GWN7832 series are Layer 3 aggregation switches that allow enterprises to build scalable, secure, high-performance, and smart business networks that are fully manageable and support maximum capacity. 2/4 Gigabit Ethernet ports, 6/24 Gigabit SFP ports, and 4/12 10Gigabit SFP+ ports Supports deployment in IPv6 and IPv4 networks ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping Embedded controller to manage switch; GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platform, and Routers Built-in QoS allows for prioritization of network traffic Supports stacking for easy management on one interface while creating redundant backup between multiple devices
Manufacturer: GRANDSTREAM
Call for pricing
Specs
Network ProtocolsIPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3AB, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x
Gigabit Ethernet Ports2
SFP Ports6
SFP+ 10Gigabit Ports4
Total Non-Blocking Throughput48Gbps
Switching Capability96Gbps
Forwarding Rate71.424Mpps
QoS
  • Port priority
  • Priority mapping
  • Queue scheduling, including SP, WRR, WFQ, SP-WRR, and SP-WFQ
  • Traffic shaping
  • Rate limit
Switching, Routing, and Multicast
  • 16K MAC addresses, including static, dynamic and filtering MAC address
  • 16 VLAN virtual interface with 9216 MTU
  • 1K ARP/NDP
  • 4K VLANs, port-based VLAN, IEEE 802.1Q VLAN tagging, Mac-based VLAN, protocol-based VLAN
  • Private VLAN
  • VOICE VLAN including auto voice VLAN, tagged OUI, and untagged OUI
  • GVRP(pending)
  • 32 link aggregation groups
  • ERPS(pending)
  • Spanning tree, 32 instances for STP/RSTP/MSTP/PVST(+)/RPVST(+)
  • 512 (IPv4)/128(IPv6) routes
  • 32(IPv4)/32(IPv6) static routing
  • Policy routing (pending)
  • Dynamic routing, including RIP, RIPng, OSPF, OSPFv3, and BGP
  • Routing Policy
  • VGRP(pending)
  • IGMP Snooping with IGMPv2 and IGMPv3, 256 IGMP Snooping groups
  • MLD Snooping with MLDv1 and MLDv2, 256 MLD Snooping groups
  • MVR
Security
  • User hierarchical management and password protection, HTTPS, SSH, Telnet
  • Identity authentication including 802.1X and MAC authentication
  • AAA authentication including RADIUS, TACACS+
  • Storm control
  • Port isolation, port security, sticky MAC
  • Filtering MAC address
  • IP/IPv6 source guard, DoS attack prevention, ARP inspection
  • DHCP/DHCPv6 Snooping
  • Loop protection including BPDU protection, root protection and loopback protection
  • Kensington Security Slot (Kensington Lock) support
